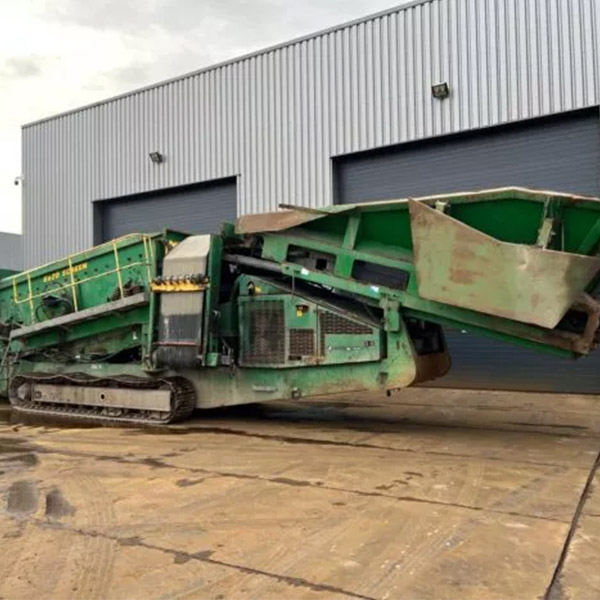

McCloskey R230 – High‑Energy Mobile Screener


The McCloskey R230 is a premium heavy-duty mobile screener designed for demanding scalping and screening operations. Whether functioning as a stand-alone unit or integrated into larger crushing spreads, it delivers outstanding throughput, durable construction, and quick setup onsite. Built for tough applications in quarrying, recycling, and mining, the R230 ensures efficient, high‑quality production.

🔧 Key Features & Specifications

  • Engine Power: 168 kW (225 hp), Cat diesel providing reliable, heavy-duty performance

  • Screenbox Size: 6.1 m × 1.83 m (20 × 6 ft) high‑energy, 2‑deck system with 10 mm stroke at 950 rpm

  • Hopper Capacity: Approximately 11.5 m³ (15.1 yd³) direct‑feed hopper, lined and sized for free-flow operation

  • Integrated Conveyors: Hydraulic folding stockpile conveyors for tail, mid, and fine products—tail reaches ~3.83 m, mid ~3.66 m, fine ~4.10 m

  • Transport Dimensions: Height ~3.5 m; Length ~16.97 m; Width ~3.0 m; Weight ~37 200–39 500 kg depending on hopper configuration

  • Robust · High‑Output · Operator‑Friendly

⚙️ Performance & Productivity

  • Fast Setup: Deploys in around 10 minutes, producing screened material quickly

  • Durable Build: Hardox-lined hopper, heavy-duty screenbox, and robust undercarriage ensure reliable long-term use

  • Optimized Flow: Wide feed-opening and ideal chute design reduce blockages and minimize material spillage

  • Service Access: Fixed walkways and standing room around the powerpack enable safer, more efficient maintenance

✅ Ideal Applications

  • Heavy-duty scalping in quarrying and mining

  • Primary screening feed for crushing operations

  • Recycling, debris processing, and aggregate production

  • Sites requiring versatile, stand-alone screening capability

✔️ Why Choose the R230?

Advantage Benefit Description
High Throughput Large screen and hopper ensure maximum material flow
Strong Engine Cat diesel power supports continuous, heavy use
Quick Deployment Fast setup reduces downtime and boosts productivity
Built for Durability Hardox linings and rugged components withstand tough environments
Easy Maintenance Access platforms and service-friendly design reduce costs

Final Thoughts:
The McCloskey R230 is a powerful, mobile screening solution engineered for durability, speed, and efficiency. Whether used independently or as part of a larger crushing setup, the R230 optimizes output and uptime—delivering reliable performance for the most demanding operations.

Screen harder. Service faster. Choose the R230 for maximum screening efficiency.
