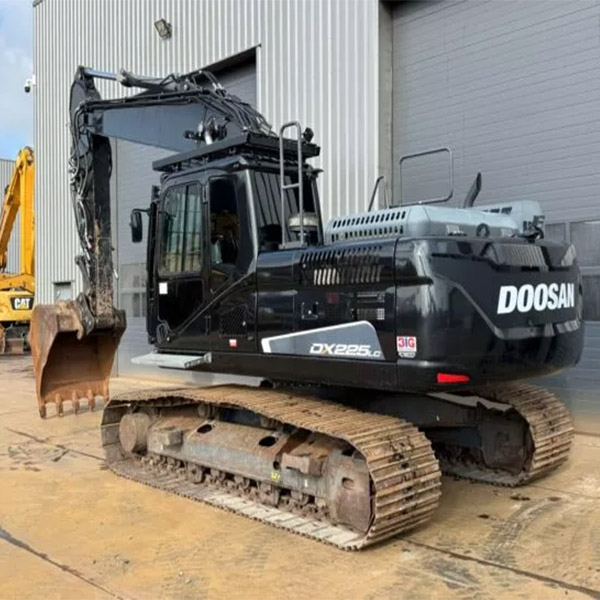

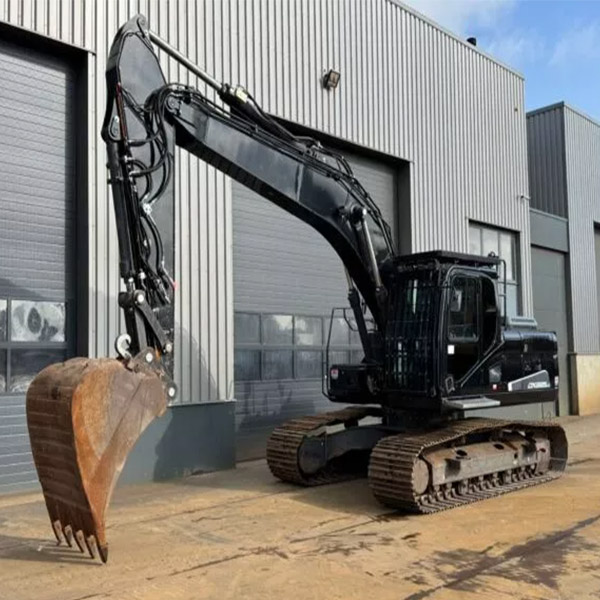

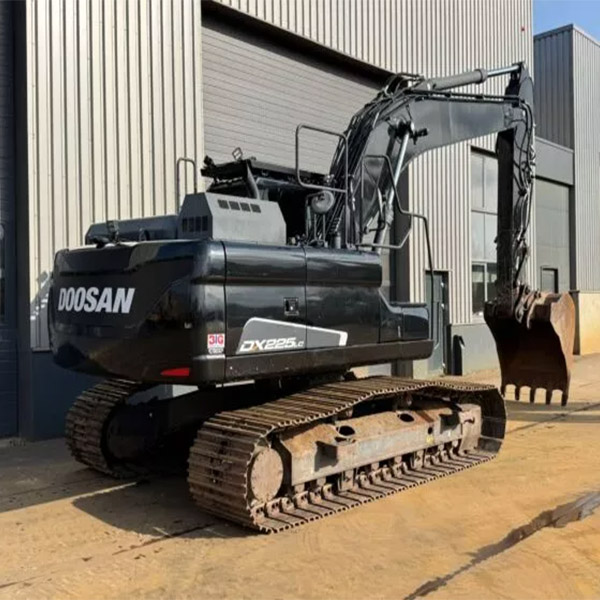

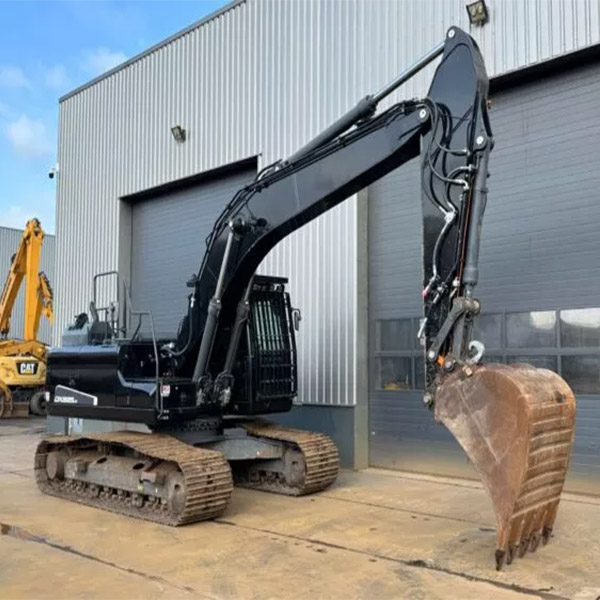

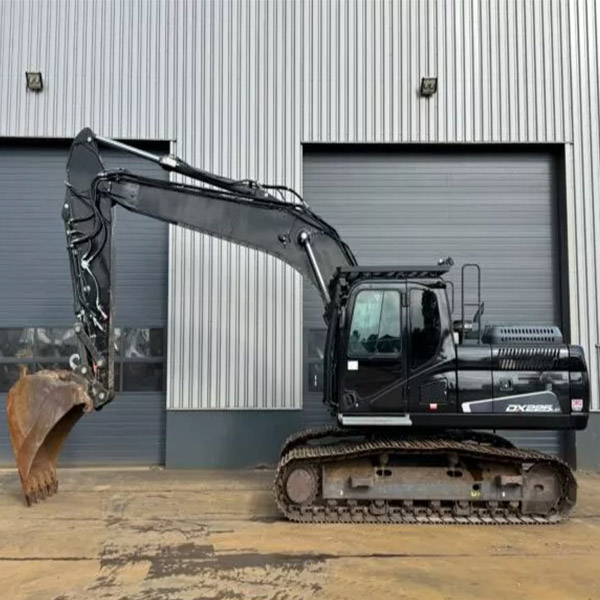

Doosan DX225LC‑5 – CE / Stage IV Crawler Excavator
The Doosan DX225LC‑5 is a Stage IV (Tier‑4 Final) compliant crawler excavator in the 21-ton class, designed to deliver exceptional performance, fuel economy, and operator comfort. Engineered for general construction, utilities, site development, and select heavy-duty tasks, it combines modern hydraulics, smart engine controls, and robust durability.
Key Features:
-
Engine: Turbocharged 6‑cylinder Doosan DL06P diesel, producing 124 kW (166 hp) at 1,800 rpm
-
Emissions System: Stage IV compliant using cooled EGR and SCR without a diesel particulate filter
-
Smart Power Control (SPC): Combines variable speed control and pump torque control for up to 9% improved fuel efficiency
-
Telematics: Factory‑installed DoosanConnect system with free 3‑year subscription for remote fleet monitoring
-
Operator Comfort: Larger cab with shortened joysticks, two‑way auxiliary controls via joystick or foot pedal, and an LCD control screen mounted to the seat suspension for reduced vibration
Technical Specifications:
-
Engine Power (Net): Approximately 162 hp (121 kW)
-
Operating Weight: ~23,600 kg (52,000 lb)
-
Maximum Digging Depth: Approx. 6.6–6.7 m (21 ft 7 in)
-
Maximum Reach (Ground): ~9.7–9.8 m (31 ft 10 in)
-
Bucket Digging Force: ~33,510 lbf
-
Arm Digging Force: ~23,810 lbf
-
Hydraulic Pump Flow: ~413 L/min (109 gpm) total from dual high‑capacity pumps
-
Travel Speed: Around 3.5–5 km/h (dependent on final drive ratio)
-
Fuel Tank Capacity: Approximately 400 liters (~106 gal)
Applications:
-
Urban excavation and general construction
-
Pipeline and drainage trenching
-
Site preparation and utility installation
-
Quarrying and aggregate handling
-
Super long‑reach (SLR) configuration available for deep excavation/dredging applications with extended digging depth (~11.6 m / 38 ft 2 in) and reach (~15.2 m / 50 ft)
Why Choose the DX225LC‑5?
| Feature |
Benefit |
| Smart Power Control (SPC) |
Balances hydraulic output and engine performance for fuel savings |
| Advanced Cab & Controls |
Operator-friendly setup with quick attachment modes and low vibration |
| Durable Design |
X‑frame chassis, robust boom, and long greasing intervals |
| Telematics Included |
Remote monitoring of machine health, fuel usage, and usage patterns |
| Easy Maintenance |
Centralized service points, air precleaner, and streamlined access |
Conclusion:
The Doosan DX225LC‑5 stands out in its class for combining high-output hydraulics, fuel-efficient engine management, telematics support, and operator-focused design. Whether your project involves deep digging, long reach manoeuvres, or efficient city-site earthmoving, this machine delivers improved productivity, reduced operating costs, and modern functionality.
